Bending Machines |

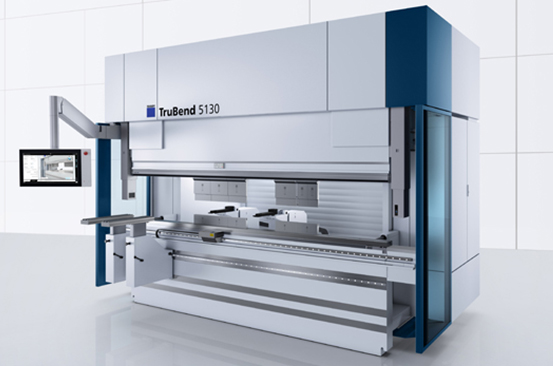

TruBend Series 5000 (B23)
|
| |
|
| |
|
|
Technical Specifications
|
TruBend 5130
|
TruBend 5170
|
|
Press force
|
1300 kN
|
1700 kN
|
|
Bending length
|
3230 mm
|
3230 mm
|
|
Bending length with larger model (options)
|
|
4250 mm
|
|
Usable installation height
|
|
615 mm
|
|
Usable installation height with larger model (options)
|
615 mm
|
|
|
Throat
|
420 mm
|
420 mm
|
|
Rapid speed
|
220 mm/s
|
220 mm/s
|
|
Max. working speed
|
25 mm/s
|
25 mm/s
|
|
User interface
|
Touchpoint TruBend
|
Touchpoint TruBend
|
|
| |
| |
 |
