Horizontal Balancing Machines
|
|

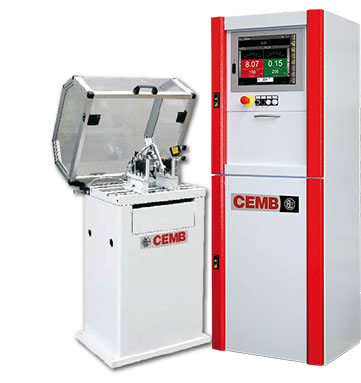

Z5-TC
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 10 Kg
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 10
|
|
Maximum diameter of rotor
|
mm 260
|
|
Diameter of rotor journals
|
mm 5 ÷ 35
|
|
Maximum sensitivity
|
g.mm 0,08
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|
|

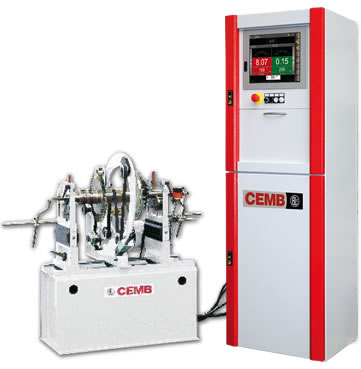

Z100-TCN
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 150 Kg.
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 150
|
|
Maximum diameter of rotor
|
mm 735
|
|
Diameter of rotor journals
|
mm 5 ÷ 70
|
|
Maximum sensitivity
|
g.mm 0,2
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|
|

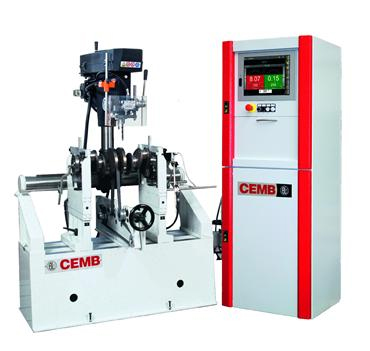

Z300-TCI
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 450 Kg.
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 450
|
|
Maximum diameter of rotor
|
mm 1000
|
|
Diameter of rotor journals
|
mm 5 ÷ 100
|
|
Maximum sensitivity
|
g.mm 0,8
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|

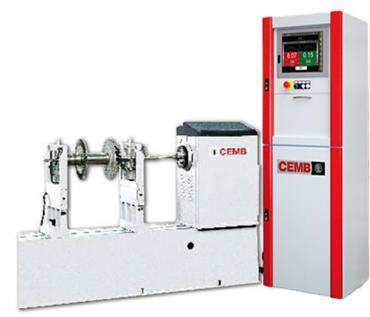

| Z300-G-GV |
|
|
| |
|
|
|
Balancing machine for rotors weight up to 450 Kg.
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 450
|
|
Maximum diameter of rotor
|
mm 1000
|
|
Diameter of rotor journals
|
mm 5 ÷ 100
|
|
Maximum sensitivity
|
g.mm 0,8
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
| |
|
|
| |
|
|
| |
|
 |
