E-430
|
|
|
| |
|
|
 |
|
|
Model
|
E-430
|
|
Capacity
|
?
|
Ø 30-430 Mm
|
|
¦
|
30-430 Mm
|
|
Blade Size
|
5900 X 54 X 1.6 Mm
|
|
Blade Speed
|
15-120 M/Min
|
|
Blade Tension
|
Hydraulic
|
|
Motor
|
Blade Drive
|
11 Kw
|
|
Hyd. Pump
|
3.7 Kw
|
|
Coolant Pump
|
0.375 Kw
|
|
Wire Brush
|
90 W
|
|
Auto. Chip Conveyor
|
Chain Type
|
|
Machine Dimension
|
3700 X 2000 X 2300 Mm
|
|
Machine Weight
|
5500 Kgs
|
|
| |
|
|
|
|
E-530
|
|
|
| |
|
|
 |
|
|
Model
|
E-530
|
|
Capacity
|
?
|
Ø 30-530 Mm
|
|
¦
|
30-530 Mm
|
|
Blade Size
|
6670 X 67 X 1.6 Mm
|
|
Blade Speed
|
15-120 M/Min
|
|
Blade Tension
|
Hydraulic
|
|
Motor
|
Blade Drive
|
15 Kw
|
|
Hyd. Pump
|
3.7 Kw
|
|
Coolant Pump
|
0.375 Kw
|
|
Wire Brush
|
90 W
|
|
Auto. Chip Conveyor
|
Chain Type
|
|
Machine Dimension
|
4050 X 2100 X 2450 Mm
|
|
Machine Weight
|
7000 Kgs
|
|
| |
|
|
|
|

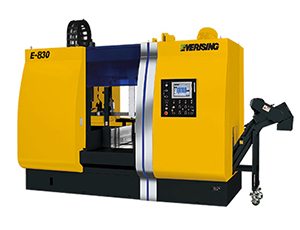

E-830
|
|
|
| |
|
|
.jpg) |
|
|
Model
|
E-830
|
|
Capacity
|
?
|
Ø 250-830 Mm
|
|
¦
|
250-830 Mm
|
|
Blade Size
|
8500 X 80 X 1.6 Mm
|
|
Blade Speed
|
12-120 M/Min
|
|
Blade Tension
|
Hydraulic
|
|
Motor
|
Blade Drive
|
18.5 Kw
|
|
Hyd. Pump
|
3.7 Kw
|
|
Coolant Pump
|
0.375 Kw
|
|
Wire Brush
|
120 W
|
|
Auto. Chip Conveyor
|
Chain Type
|
|
Machine Dimension
|
5350 X 2200 X 3000 Mm
|
|
Machine Weight
|
13000 Kgs
|
|
| |
|
|
