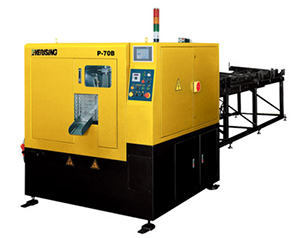

P-70B
|
|
|
| |
|
|
 |
|
|
Model
|
P-70B
|
|
Capacity
|
?
|
10 - 70 mm
|
|
¦
|
10 - 54 mm
|
|
|
10 - 54 mm
|
|
Blade Motor
|
10 HP
|
|
Hydraulic Pump Motor
|
2 HP
|
|
Blade Speed
|
30 -150 rpm
|
|
Saw Blade Size ( T:Kerf t:Thickness )
|
Ø 285 x T2.0 x 1.75t mm
|
|
Blade Feed
|
Servo motor and ball screw
|
|
Load Table ( W x L )
|
1200 mm x 5200 mm
|
|
Bar Feed
|
Servo motor and ball screw
|
|
Automatic Feed Length
|
Single feed 8 - 600 mm
Multiple feed - 3000 mm
|
|
Automatic Chip Conveyor
|
Scraper type
|
|
Cooling
|
Air compressed oil mist
|
|
Machine weight With Table
|
3200 kg
|
|
Floor Space (mm)
|
Machine With 5M Load Table
|
2700 W x 1900 L
2700 W x 6835 L
|
|
| |
|
|
|
|

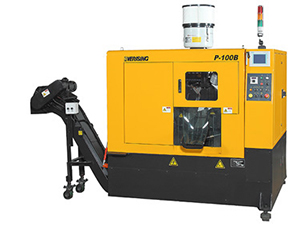

P-100B
|
|
|
| |
|
|
 |
|
|
Model
|
P-100B
|
|
Capacity
|
?
|
15 - 100 mm
|
|
¦
|
15 - 80 mm
|
|
|
15 - 80 mm
|
|
Blade Motor
|
15 HP
|
|
Hydraulic Pump Motor
|
3 HP
|
|
Blade Speed
|
30 - 130 rpm
|
|
Saw Blade Size ( T:Kerf t:Thickness )
|
Ø 360 x T2.6 x 2.25t mm
|
|
Blade Feed
|
Servo motor and ball screw
|
|
Load Table ( W x L )
|
1200 mm x 5200 mm
|
|
Bar Feed
|
Servo motor and ball screw
|
|
Automatic Feed Length
|
Single feed 8 - 600 mm
Multiple feed - 3000 mm
|
|
Automatic Chip Conveyor
|
Scraper type
|
|
Cooling
|
Air compressed oil mist
|
|
Machine weight With Table
|
3900 kg
|
|
Floor Space (mm)
|
Machine With 5M Load Table
|
2900 W x 1900 L
2900 W x 6835 L
|
|
| |
|
|
|
|

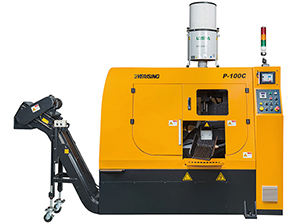

P-100C
|
|
|
| |
|
|
 |
|
|
Model
|
P-100C
|
|
Capacity
|
?
|
15 - 100 mm
|
|
¦
|
15 - 80 mm
|
|
|
15 - 80 mm
|
|
Blade Motor
|
15 HP
|
|
Hydraulic Pump Motor
|
3 HP
|
|
Blade Speed
|
30 - 130 rpm
|
|
Saw Blade Size ( T:Kerf t:Thickness )
|
Ø 360 x T2.6 x 2.25t mm
|
|
Blade Feed
|
Servo motor and ball screw
|
|
Load Table ( W x L )
|
1200 mm x 5200 mm
|
|
Bar Feed
|
Servo motor and ball screw
|
|
Automatic Feed Length
|
Single feed 8 - 600 mm
Multiple feed - 3000 mm
|
|
Automatic Chip Conveyor
|
Scraper type
|
|
Cooling
|
Air compressed oil mist
|
|
Machine weight With Table
|
3900 kg
|
|
Floor Space (mm)
|
Machine With 5M Load Table
|
2900 W x 1960 L
2900 W x 6835 L
|
|
| |
|
|
|
|

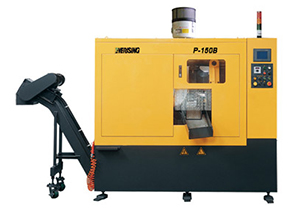

P-150B
|
|
|
| |
|
|
 |
|
|
Model
|
P-150B
|
|
Capacity
|
?
|
70 - 150 mm
|
|
¦
|
70 - 105 mm
|
|
|
70 - 120 mm
|
|
Blade Motor
|
20 HP
|
|
Hydraulic Pump Motor
|
5 HP
|
|
Blade Speed
|
30 - 130 rpm
|
|
Saw Blade Size ( T:Kerf t:Thickness )
|
Ø 460 x T2.7 x 2.25t mm
|
|
Blade Feed
|
Servo motor and ball screw
|
|
Load Table ( W x L )
|
1200 mm x 5200 mm
|
|
Bar Feed
|
Servo motor and ball screw
|
|
Automatic Feed Length
|
Single feed 10 - 700 mm
Multiple feed - 3000 mm
|
|
Automatic Chip Conveyor
|
Scraper type
|
|
Cooling
|
Air compressed oil mist
|
|
Machine weight With Table
|
4900 kg
|
|
Floor Space (mm)
|
Machine With 5M Load Table
|
3100 W x 2075 L
3100 W x 7175 L
|
|
| |
|
|
|
|

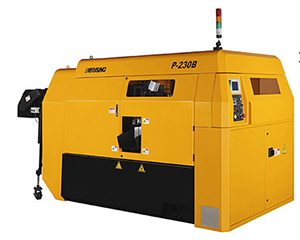

P-230B
|
|
|
| |
|
|
 |
|
|
Model
|
P-230B
|
|
Capacity
|
?
|
70 - 230 mm
|
|
¦
|
70 - 160 mm
|
|
|
-
|
|
Blade Motor
|
40 HP
|
|
Hydraulic Pump Motor
|
5 HP
|
|
Blade Speed
|
20 - 70 rpm
|
|
Saw Blade Size ( T:Kerf t:Thickness )
|
Ø750 x T 3.8 x 3.2t mm
|
|
Blade Feed
|
Servo motor and ball screw
|
|
Load Table ( W X L )
|
2286 mm x 5380 mm
|
|
Bar Feed
|
Servo motor and ball screw
|
|
Automatic Feed Length
|
Single feed 10 - 500 mm
Multiple feed - 3000 mm
|
|
Automatic Chip Conveyor
|
Chain type
|
|
Cooling
|
Air compressed oil mist
|
|
Machine Weight with Table
|
8000 kg
|
|
Floor Space (mm)
|
Machine with 5M load Table
|
3510 W x 1825 L
3510 W x 7120 L
|
|
| |
|
|
