Silicon Cutsaw
|
|

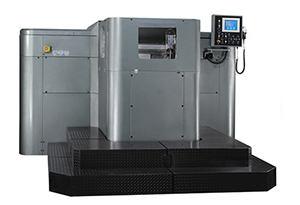

WH-860
|
|
|
| |
|
|
 |
|
|
Model
|
WH-860
|
|
Capacity
|
¦
|
860 x 860 x 300 mm
|
|
Blade size
|
8400 x 67 x 1.6 mm
|
|
Blade speed
|
500 - 1500 m/min
|
|
Motor
|
Blade
|
11 kW ( 15 HP)
|
|
Hyd
|
2.2 kW ( 3 HP)
|
|
Coolant
|
750 W ( 1 HP)
|
|
H.P. Coolant
|
375 W ( 1/2 HP)
|
|
Feeding
|
1 kW
|
|
Cutting
|
1.5 kW
|
|
Table
|
Stroke
|
10 - 860 mm
|
|
Cutting Stroke
|
300 mm(Cutting height)
|
|
Tension type
|
Hydraulic
|
|
Length setting
|
NC control
|
|
Machine Weight
|
19000 kg
|
|
Machine Size (W x D x H)
|
4200 x 3500 x 2415 mm
|
|
Floor Space
|
4200 x 3500 mm
|
|
| |
|
|
|
|

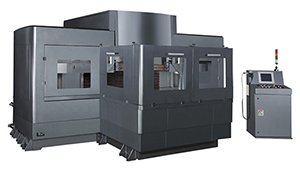

SC-860
|
|
|
| |
|
|
 |
|
|
Model
|
SC-860
|
|
Cutting Capacity
|
¦
|
650 x 650 mm
|
|
Blade size
|
8950 x 100 x 1.1 mm
|
|
Blade speed
|
250 - 1500 m/min
|
|
Motor
|
Blade
|
11 kW (15 HP)
|
|
Hyd. pump
|
1.5 kW (2 HP)
|
|
Coolant pump
|
750 W (1 HP)
|
|
Table infeed
|
1 kW (Servo Motor)
|
|
Blade infeed
|
1.5 kW (Servo Motor)
|
|
Shuttle Table
|
Stroke
|
1100 mm
|
|
Cutting infeed stroke
|
355 mm
|
|
Tension type
|
Hydraulic
|
|
Length Index
|
NC
|
|
Machine size (W x D x H)
|
4050 x 3500 x 2250 mm
|
|
Floor space
|
4500 x 3600 mm
|
|
Machine weight
|
10000 kg
|
|
| |
|
|
| |
|
|
