Special Machines |

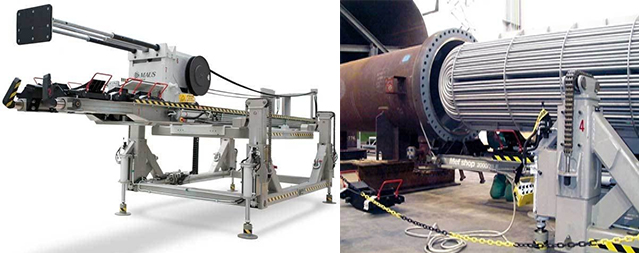

Fixed station tube bundle heat exchangers inserter/extractor.Mef shopIN
|
|
![](/userfiles/image/RIM/Machinery%20and%20Power%20Tools/Heat%20exchanger-Boiler/mef%20shop%20in.jpg) |
|
The Mef shopIN is an independent machine — no gantry crane required — and it enables to solve the problem of fast, accurate, and safe insertion and extraction.
|
|
|
|
The Maus Italia expertise in manufacturing extractors (aerial, self-positioning and off-shore extractors) made it possible to create a machine dedicated to modern companies manufacturing heat exchangers with the following main features:
|
|
|
![](/userfiles/image/RIM/bullet%20icon1.gif) |
Tube sheet max diameter 2000 mm (78”)
|
|
Tube bundle max length 7500 mm (295”)
|
|
Max load capacity 22 T (48500 Lb)
|
|
Max thrust/pulling force 35 T (77100 Lb)
|
|
Max insertion/extraction speed 1,5 m/min (4.9 Ft/min)
|
|
|
