Powermax 65 SYNC
|

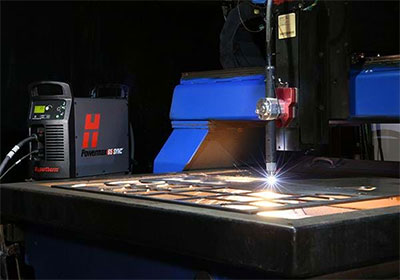

The Powermax65 SYNC™ is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC™ torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.
|
| Technical Specification |
|
|
| Capacity |
Thickness |
Cut speed |
| |
Cutting |
|
| Recommended |
20 mm (3/4") |
500 mm/min (20 ipm) |
| |
25 mm (1") |
250 mm/min (10 ipm) |
| Severance (hand cutting) |
32 mm (1-1/4") |
125 mm/min (5 ipm) |
| Pierce |
16 mm (5/8") |
|
| Pierce rating for handheld use or with automatic torch height control |
| Capacity |
Metal removal rate |
Groove profile |
| |
Gouging |
|
| Typical gouge |
4,0 kg/hr
(8.8 lbs/hr) |
2.9 mm D x 6,4 mm W
(0.11" D x 0.25" W) |
|
|
| |
|
| |
|
 |
|
