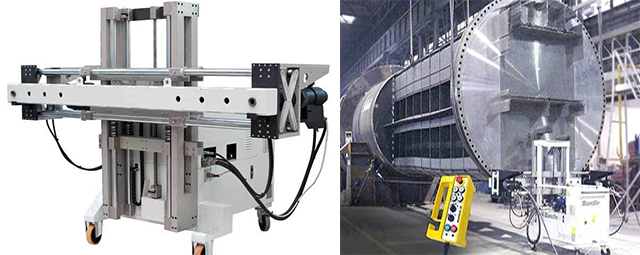

Tube bundle inserter for heat exchangers - BundleIN


The BundleIN, together with the gantry crane, enables to solve the problem of a fast, accurate, and safe insertion.
The original functioning based on two synchronized hydraulic guns stretching two steel wire ropes makes it possible to apply it to tube sheets regardless of length limits with the following main features:
Tube sheet max diameter limitless
  Tube bundle max length limitless
  Max load capacity limitless (according to the gantry crane)
  Max pulling force 60 T (132200 Lb)
  Max insertion speed 2 m/min (6.5 Ft/min)
