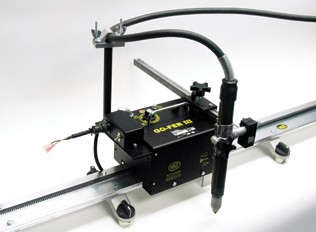

Gofer - III









Go-fer III Kits are available in specific configurations and are an affordable solution for welding, plasma or oxy-fuel cutting. The kits come complete with a drive, torch holder, 8 foot rail and on/off magnet assemblies. Additional sections of rail, a radius cutting attachment and vacuum cups for non-ferrous applications are also available.








Oxy-fuel Go-fer Kit
The Go-fer III Oxy-Fuel Kit is used for straight line cuts and weld preparation beveling. The kit comes complete with the exception of a torch. The Bug-O Torch Holder will accept any standard 1-3/8" (35 mm) diameter machine torch with a 32 pitch gear rack. The Quick-Action Gas Manifold mounted to the rear of the machine is used as a strain reliever for the torch and also gives the operator the ability to turn on and off the pre-heat gases without having to readjust the gas flow of the torch.

Plasma Go-fer Kit
The Go-Fer III Plasma Kit is specifically designed to work in conjunction with a plasma machine. Its travel speed of 8-100 inches per minute (203-2540 mm/min) and its direct rack and pinion drive make it ideal as an all position portable cutting machine for a plasma torch. The torch holder will accept any standard 1-3/8" (35 mm) diameter machine torch that has a 32 pitch gear rack. A built in trigger contactor for initiating the cut makes the Go-fer a convenient self contained package.

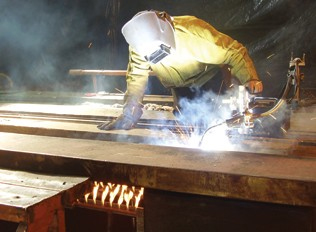

Welding Go-fer Kit
The Go-Fer III Welding Kit is an economical straight-line welding travel carriage. The all position Fits-All Clamp will accept and accommodate any hand held welding gun and allow the operator to position the torch at any angle they desire. The racking group allows for in process torch adjustment for the vertical and horizontal plane. A built in torch trigger contactor allows the operator to activate the wire feeder from a switch on the top of the Drive unit.
