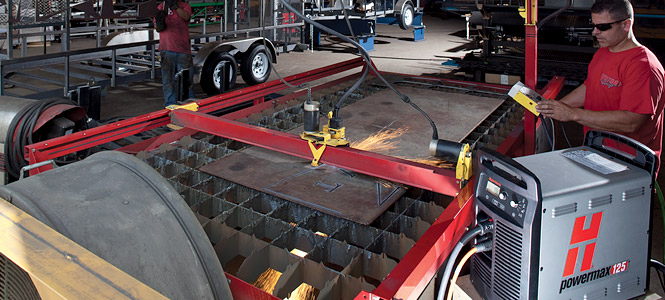

Powermax 125





With the maximum power and performance for air plasma, the new Powermax125 cuts fast and thick. A 100% duty cycle, a 1" (25 mm) mechanized pierce capability, and a gouging metal removal rate of 27.6 lbs/hr (12.52 kg/hr) make the Powermax125 the tool for any industrial cutting and gouging job. New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.














Technical Specification

Capacity Thickness Cut speed
  Cut speed
Recommended 38 mm (1-1/2") 457 mm/min (18 ipm)
  44 mm (1-3/4") 250 mm/min (10 ipm)
Severance (hand cutting) 57 mm (2-1/4") 125 mm/min (5 ipm)
Pierce 25 mm (1")
Pierce rating for handheld use or with automatic torch height control
Capacity Metal removal rate Groove profile
Gouging
Typical gouge 12,52 kg/hr
(27.6 lbs/hr)
4,3 mm-7,9 mm D x 6,1 mm-9,9 mm W
(0.17-0.31" D x 0.24–0.39" W)
