Punching Machines |

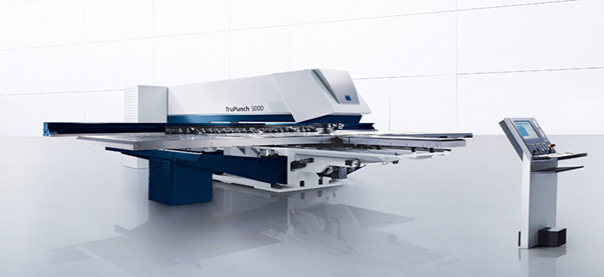

| TruPunch 5000 |
| |
 |
| |
|
Technical Specification
|
TruPunch 5000 Medium format
|
TruPunch 5000 Large format
|
|
Working area
|
|
|
|
Punching operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Max. sheet thickness
|
8 mm
|
8 mm
|
|
Max. punching force
|
220 kN
|
220 kN
|
|
Max. stroke rate
|
|
|
|
Punching (E = 1 mm)
|
1600 1/min
|
1350 1/min
|
|
Marking
|
ca. 3000 1/min
|
ca. 3000 1/min
|
|
Max. number tools
|
|
|
|
with 3 clamps
|
18 pieces
|
|
|
with 4 clamps
|
|
21 pieces
|
|
Tool change time (Single tool)
|
< 3 s
|
< 3 s
|
|
Tool change time (Multitool)
|
0,3 s
|
0,3 s
|
|
Space requirements
|
6760 mm x 6100 mm
|
7600 mm x 7000 mm
|
|
| |
| |
 |
