Plate Bending Machines |
|
HAEUSLER HYBRID Technology (HHT)
|
|
|
| |
|
|

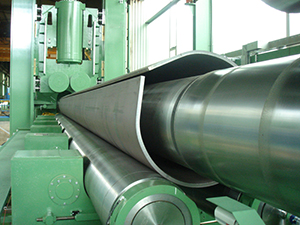

The HAEUSLER RMS is a 3 roll bending machine with a symmetrical setup of supported bottom rolls designed for mass pipe production. To allow bending of high wall thicknesses to small diameters (< 508 mm diameter at 12.2 m tube length) the top roll can be pre-loaded. For very small diameters a supported top roll can be used. This machine offers you an optimum balance of bending quality, productivity and investment, especially for LSAW pipe production.
Available Bending Capacities :
 Diameters: 406 mm (16”) up to 1’626 mm (64”)
Sheet witdh: Max. 13’000 mm
Sheet thickness: Max. 42 mm (X70)
Max. Material: X120
Detailed values upon request.
|
|
