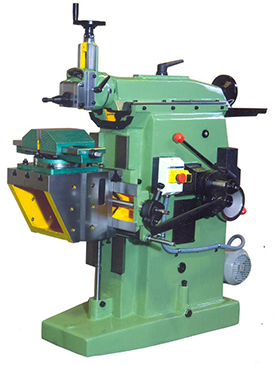

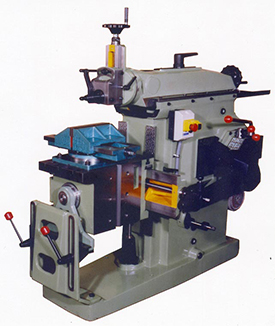

Shaping Machines

Technical Specifications	L350E	L350E/2	L450E	L500E	L550E	L600E	L650E	L750E
Ram stroke	350 mm	350mm	450mm	500mm	550mm	600mm	650mm	750mm
Speeds Strokes per minute	3 35 140	6 23140	6 20130	6 19124	6 17112	6 17112	6 20112	6 1798
Table dimensions 350x260x260 mm 350x260x260 mm 450x300x300 mm 450x300x300 mm 550x310x310 mm 550x310x310 mm 650x390x390 mm 750x400x410 mm
Table horiz.travel	410 mm	410 mm	500 mm	500 mm	600 mm	600 mm	650 mm	750 mm
Table vertical travel	350 mm	350 mm	305 mm	305 mm	315 mm	315 mm	330 mm	350 mm
Table horiz. Feeds	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm	(6) 0,251,5 mm	(6) 0,251,5 mm
Toolhead vertical travel	130 mm	130 mm	150 mm	150 mm	150 mm	150 mm	180 mm	180 mm
Down feeds toolholder	Optional	Optional	Optional	Optional	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm	(5) 0,2 1 mm
Max. distance table to ram	430 mm	430 mm	375 mm	375 mm	370 mm	370 mm	405 mm	460 mm
Vice: Openingwidth	230x180 mm	230x180 mm	270x220 mm	270x220 mm	270x220 mm	270x220 mm	270x220 mm	270x220 mm
Motor power	1,5 HP	1,11,6 HP	2 HP	3HP	3HP	4HP	5,5 HP	7,5 HP
