Punch Laser Machines
|

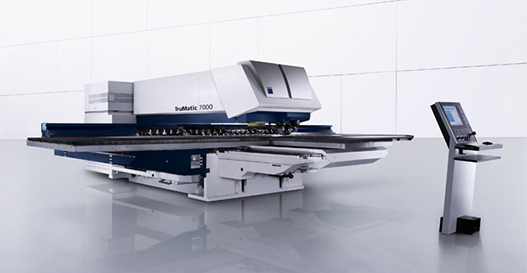

| TruMatic 7000 |
| |
|
| |
|
|
Technical Specifications
|
TruMatic 7000 Medium format
|
TruMatic 7000 Large format
|
|
Working area
|
|
|
|
Punching operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Laser operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Combined punch/laser operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Max. sheet thickness
|
8 mm
|
8 mm
|
|
Laser power
|
2700 / 3200 / 4000 W
|
2700 / 3200 / 4000 W
|
|
Max. punching force
|
220 kN
|
220 kN
|
|
Max. stroke rate
|
|
|
|
Punching (E = 1 mm)
|
1200 1/min
|
1200 1/min
|
|
Marking
|
ca. 2800 1/min
|
ca. 2800 1/min
|
|
Speed C axis
|
|
|
|
C axis punching
|
330 rpm
|
330 rpm
|
|
C axis thread tapping
|
330 rpm
|
330 rpm
|
|
Max. number tools
|
|
|
|
with 3 clamps
|
22 pieces
|
|
|
with 4 clamps
|
|
21 pieces
|
|
Space requirements
|
8000 mm x 6700 mm
7950 mm x 6700 mm
|
8070 mm x 7650 mm
|
|
