Laser Cutting Machines |

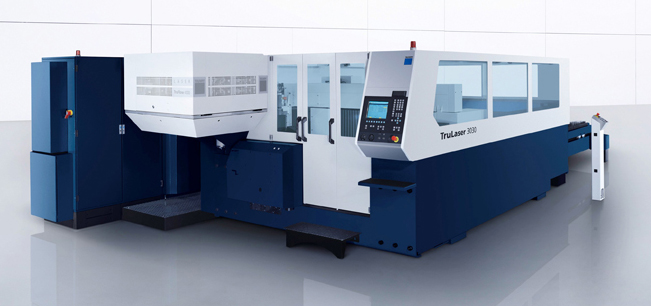

TruLaser 3060
|
| |
|
| |
|
Technical Specification
|
TruLaser 3060
|
|
Working range
|
|
|
X axis
|
6000 mm
|
|
Y axis
|
2000 mm
|
|
Z axis
|
115 mm
|
|
Max. material thickness with TruFlow 3200
|
|
|
Mild steel
|
20 mm
|
|
Stainless steel
|
12 mm
|
|
Aluminum
|
8 mm
|
|
Max. material thickness with TruFlow 4000
|
|
|
Mild steel
|
20 mm
|
|
Stainless steel
|
15 mm
|
|
Aluminum
|
10 mm
|
|
Max. axis speed simultaneous
|
85 m/min
|
|
Dimensions
|
|
|
Length
|
16100 mm
|
|
Width
|
5200 mm
|
|
Height
|
2000 mm
|
|
Weight
|
21500 kg
|
|
| |
| |
 |
