Fully Automatic Bandsaw Machines
|
|

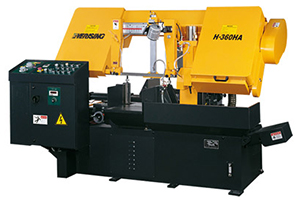

H-360 HA
|
|
|
| |
|
|
| |
|
|
 |
|
|
Model
|
H-360HA
|
|
Capacity
|
?
|
360 mm (14")
|
|
¦
|
360 x 360 mm (14"W x 14"H)
|
|
Bundle Cutting
|
Width
|
180 to 280 mm (7" to 11")
|
|
Height
|
50 to 160 mm (2" to 6")
|
|
Blade Speed
|
20 to 100 m/min (65 to 330 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
3.7 kW (5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.1 kW (1/8HP)
|
|
Blade Size
|
4420 x 34 x 1.1 mm (174" x 1.3" x 0.042")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
500 mm x 9 times (20" x 9")
|
|
Machine Weight
|
2000 kg (4410 lb)
|
|
Floor Space (L x W)
|
2500 x 2200 mm (98" x 87")
|
|
| |
|
|
|
|

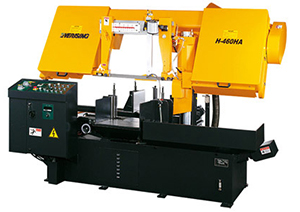

H-460 HA
|
|
|
| |
|
|
 |
|
|
Model
|
H-460HA
|
|
Capacity
|
?
|
460 mm (18")
|
|
¦
|
500 x 460 mm (20"W x 18"H)
|
|
Bundle Cutting
|
Width
|
195 to 310 mm (8" to 12")
|
|
Height
|
120 to 230 mm (5" to 9")
|
|
Blade Speed
|
20 to 100 m/min (65 to 330 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
5.5 kW (7.5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
5450 x 41 x 1.3 mm (215" x 1.6" x 0.05")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
500 mm x 9 times (20" x 9")
|
|
Machine Weight
|
2700 kg (5950 lb)
|
|
Floor Space (L x W)
|
2820 x 2190 mm (111" x 86")
|
|
| |
|
|
|
|

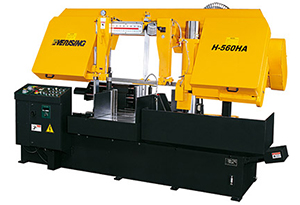

H-560 HA
|
|
|
| |
|
|
 |
|
|
Model
|
H-560HA
|
|
Capacity
|
?
|
560 mm (22")
|
|
¦
|
615 x 560 mm (24.2"W x 22"H)
min. clamp width 110 mm (4.3")
|
|
Blade Speed
|
18 to 90 m/min (60 to 300 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
7.5 kW (10HP)
|
|
Hyd. Pump
|
2.2 kW (3HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
6600 x 54 x 1.6 mm (260" x 2.1" x 0.0632")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
400 mm (16")
400 mm x 9 times (16" x 9)
|
|
Machine Weight
|
4500 kg (9920 lb)
|
|
Floor Space (L x W)
|
3400 x 2190 mm (134" x 86")
|
|
| |
|
|
|
|

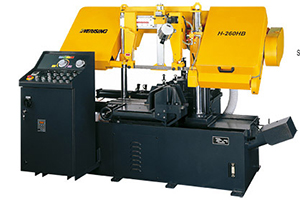

H-260 HB
|
|
|
| |
|
|
 |
|
|
Model
|
H-260HB
|
|
Capacity
|
?
|
260 mm (10.25")
|
|
¦
|
310 x 260 mm (12"W x 10.25"H)
|
|
Bundle Cutting
|
Width
|
145 to 190 mm (6" to 8")
|
|
Height
|
30 to 130 mm (1.2" to 5")
|
|
Blade Speed
|
20 to 100 m/min (65 to 330 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
3.7 kW (5HP)
|
|
Hyd. Pump
|
0.75 kW (1HP)
|
|
Coolant Pump
|
0.1 kW (1/8HP)
|
|
Blade Size
|
3920 x 34 x 1.1 mm (155" x 1.3" x 0.042")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
400 mm (16")
400 mm x 9 times (16" x 9")
|
|
Machine Weight
|
1750 kg (3860 lb)
|
|
Floor Space (L x W)
|
2170 x 2100 mm (85" x 83")
|
|
| |
|
|
|
|

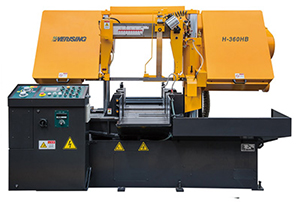

H-360 HB
|
|
|
| |
|
|
 |
|
|
Model
|
H-360HB
|
|
Capacity
|
?
|
360 mm
|
|
¦
|
360 x 360 mm
|
|
Bundle Cutting
|
Width
|
180 to 280 mm
|
|
Height
|
50 to 160 mm
|
|
Blade Speed
|
20 to 100 m/min
|
|
Motor
|
Blade Drive
|
3.7 kW (5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.1 kW (1/8HP)
|
|
Blade Size
|
4420 x 34 x 1.1 mm
|
|
Blade Tension
|
Hydraulic
|
|
Machine Weight
|
2200 kg
|
|
Floor Space (L x W)
|
2500 x 2200 mm
|
|
| |
|
|
|
|

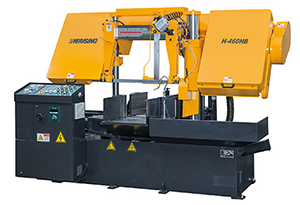

H-460 HB
|
|
|
| |
|
|
 |
|
|
Model
|
H-460HB
|
|
Capacity
|
?
|
460 mm
|
|
¦
|
460 x 460 mm
|
|
Bundle Cutting
|
Width
|
195 to 310 mm
|
|
Height
|
120 to 230 mm
|
|
Blade Speed
|
20 to 100 m/min
|
|
Motor
|
Blade Drive
|
5.5 kW (7.5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
5450 x 41 x 1.1 mm
|
|
Blade Tension
|
Hydraulic
|
|
Machine Weight
|
3600 kg
|
|
Floor Space (L x W)
|
2820 x 2190 mm
|
|
| |
|
|
|
|
H-700HANC
|
|
|
| |
|
|
 |
|
|
Model
|
H-700HANC
|
|
Capacity
|
?
|
700 mm (28")
|
|
¦
|
800 x 700 mm (31.5"W x 28"H)
min. clamp width 285 mm (11.2")
|
|
Blade Speed
|
15 to 75 m/min (50 to 250 fpm) (Inverter)
|
|
Motor
|
Blade Drive
|
7.5 kW (10HP)
|
|
Hyd. Pump
|
2.2 kW (3HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
8000 x 54 x 1.6 mm (315" x 2.1" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20") Controlled by NC
|
|
Machine Weight
|
7000 kg (15400 lb)
|
|
Floor Space (L x W)
|
4100 x 2300 mm (161.4" x 90.5")
|
|
| |
|
|
|
|

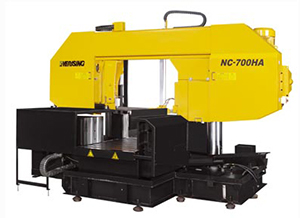

NC-700HA
|
|
|
| |
|
|
 |
|
|
Model
|
H-700HA
|
|
Capacity
|
?
|
700 mm (28")
|
|
¦
|
800 x 700 mm (31.5"W x 28"H)
min. clamp width 285 mm (11.2")
|
|
Blade Speed
|
15 to 90 m/min (50 to 300 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.2 kW (15HP)
|
|
Hyd. Pump
|
3.7 kW (5HP)
|
|
Coolant Pump
|
0.4 kW (1/2HP)
|
|
Blade Size
|
8300 x 67 x 1.6 mm (327" x 2.63" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20") Controlled by NC
|
|
Machine Weight
|
7000 kg (15400 lb)
|
|
Floor Space (L x W)
|
4100 x 2300 mm (161.4" x 90.5")
|
|
| |
|
|
|
|

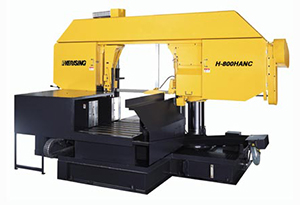

H-800HANC
|
|
|
| |
|
|
 |
|
|
Model
|
H-800HANC
|
|
Capacity
|
?
|
800 mm (31.5”)
|
|
¦
|
800 x 800 mm (31.5”W x .31.5”H)
min. clamp width 285 mm (11.2")
|
|
Blade Speed
|
15-90 m/min (50-300fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.2 kW (15 HP)
|
|
Hyd. Pump
|
3.7 kW (5 HP)
|
|
Coolant Pump
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
8720 x 67 x 1.6 mm (343.5" x 2.63" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20") Controlled by NC
|
|
Machine Weight
|
7600 kg (16720lb)
|
|
Floor Space (L x W)
|
4100 x 2300 mm (161.4" x 90.5")
|
|
| |
|
|
|
|

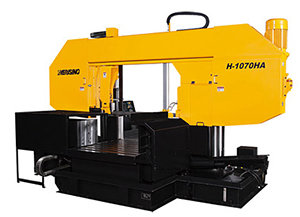

H-1070HANC
|
|
|
| |
|
|
 |
|
|
Model
|
H-1070HANC
|
|
Capacity
|
?
|
700 mm (28")
|
|
¦
|
1000 x 700 mm (40"W x 28H")
min. clamp width 585 mm (23")
|
|
Blade Speed
|
15-80 m/min (50-265 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.2 kW (15 HP)
|
|
Hyd. Pump
|
3.7 kW (5 HP)
|
|
Coolant Pump
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
8800 x 67 x 1.6 mm (346.5" x 2.63" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20") Controlled by NC
|
|
Machine Weight
|
8500 kg (18700 lb)
|
|
Floor Space (L x W)
|
4500 x 2300 mm (177" x 90.5")
|
|
| |
|
|
|
|

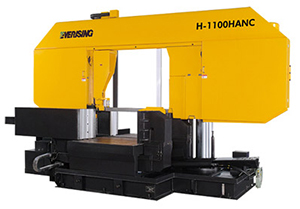

H-1100HANC
|
|
|
| |
|
|
 |
|
|
Model
|
H-1100HANC
|
|
Capacity
|
?
|
1000 mm (40")
|
|
¦
|
1100 x 1000 mm (43.3"W x 40"H)
min. clamp width 400 mm (15.7")
|
|
Blade Speed
|
15 to 75 m/min (50 to 250 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.2 kW (15HP)
|
|
Hyd. Pump
|
3.7 kW (5HP)
|
|
Coolant Pump
|
0.4 kW (1/2HP)
|
|
Blade Size
|
11100 x 80 x 1.6 mm (437" x 3" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20") Controlled by NC
|
|
Machine Weight
|
14000 kg (30800 lb)
|
|
Floor Space (L x W)
|
5150 x 2715 mm (203" x 107")
|
|
| |
|
|
| |
|
|
