Laser Cutting Machines |

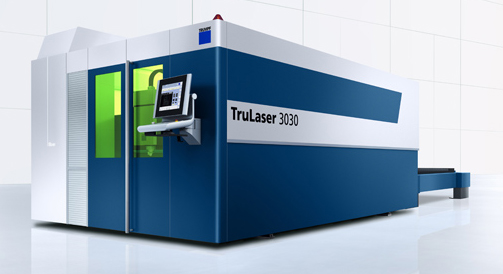

TruLaser 3030 fiber / 3040 fiber
|
| |
|
| |
|
Technical Specifications
|
TruLaser 3030 fiber
|
TruLaser 3040 fiber
|
|
Working range
|
|
|
|
X axis
|
3000 mm
|
4000 mm
|
|
Y axis
|
1500 mm
|
2000 mm
|
|
Z axis
|
115 mm
|
115 mm
|
|
Max. material thickness with TruDisk 3001
|
|
|
|
Mild steel
|
20 mm
|
20 mm
|
|
Stainless steel
|
15 mm
|
15 mm
|
|
Aluminium
|
15 mm
|
15 mm
|
|
Copper
|
6 mm
|
6 mm
|
|
Brass
|
6 mm
|
6 mm
|
|
Max. material thickness with TruDisk 4001
|
|
|
|
Mild steel
|
20 / 25* mm
|
20 / 25* mm
|
|
Stainless steel
|
20 mm
|
20 mm
|
|
Aluminium
|
20 mm
|
20 mm
|
|
Copper
|
8 mm
|
8 mm
|
|
Brass
|
8 mm
|
8 mm
|
|
Max. axis speed simultaneous
|
140 m/min
|
140 m/min
|
|
Dimensions
|
|
|
|
Length
|
9300 mm
|
11400 mm
|
|
Width
|
5100 mm
|
6730 mm
|
|
Height
|
2400 mm
|
2400 mm
|
|
Weight
|
12000 kg
|
12240 kg
|
|
| |
| |
 |
