Aluminum Cutting Bandsaw |
|

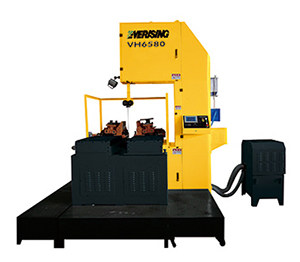

VH6580
|
|
|
| |
|
|
 |
|
|
Model
|
VH6580
|
|
Capacity
|
650H x 800W mm
|
|
Blade Size
|
6660 x 34 x 1.1 mm
|
|
Motor
|
15 kW
|
|
Blade Speed
|
500 – 2000 m/min
|
|
Feeding Speed
|
0 – 2000 mm/min
|
|
Feeding Stroke
|
1000 mm
|
|
Machine Size
|
2900L x 2600W x 3100H mm
|
|
Machine Weight
|
4500 kg
|
|
| |
|
|
|
|

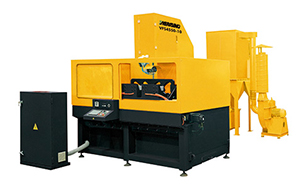

VF-S4550-10
|
|
|
| |
|
|
 |
|
|
Model
|
VFS4550-10
|
|
Capacity
|
450H x 500W mm
|
|
Blade Size
|
5260 x 34 x 1.1 mm
|
|
Motor
|
8.62 kW
|
|
Blade Speed
|
500 – 2000 m/min
|
|
Feeding Speed
|
0 – 2000 mm/min
|
|
Feeding Stroke
|
1000 mm
|
|
Machine Size
|
2500L x 1950W x 2600H mm
|
|
Machine Weight
|
4500 kg
|
|
| |
|
|
|
|

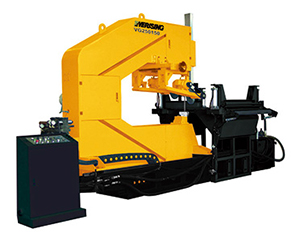

VG250150
|
|
|
| |
|
|
 |
|
|
Model
|
VG250150
|
|
Capacity
|
250H x 1200W mm
|
|
Blade Size
|
8210 x 27 x 0.9 mm
|
|
Motor
|
15 kW
|
|
Blade Speed
|
500 – 2000 m/min
|
|
Feeding Speed
|
0 – 3000 mm/min
|
|
Feeding Stroke
|
1500 mm
|
|
Machine Size
|
960L x 4700W x 3000H mm
|
|
Machine Weight
|
9000 kg
|
|
| |
|
|
|
|
V-700F
|
|
|
| |
|
|
 |
|
|
Model
|
V-700F
|
|
Capacity
|
700H x 700W mm
|
|
Blade Size
|
6190 x 41 x 1.3 mm
|
|
Motor
|
11 kW
|
|
Blade Speed
|
100 – 600 m/min (Synchronously speed adjusting)
|
|
Feeding Speed
|
|
|
Feeding Stroke
|
|
|
Machine Size
|
1790L x 1520W x 2850H mm
|
|
Machine Weight
|
2900 kg
|
|
| |
|
|
