Laser Cutting Machines |

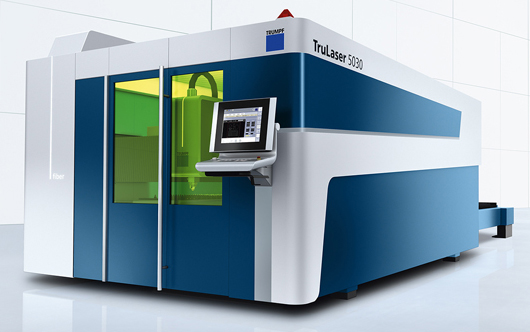

TruLaser 5030 fiber / 5040 fiber
|
| |
|
| |
|
|
|
Technical Specifications
|
TruLaser 5030 fiber
|
TruLaser 5040 fiber
|
|
Working range
|
|
|
|
X axis
|
3000 mm
|
4000 mm
|
|
Y axis
|
1500 mm
|
2000 mm
|
|
Z axis
|
115 mm
|
115 mm
|
|
Max. material thickness with TruDisk 3001
|
|
|
|
Mild steel
|
20 mm
|
20 mm
|
|
Stainless steel
|
15 mm
|
15 mm
|
|
Aluminium
|
15 mm
|
15 mm
|
|
Copper
|
6 mm
|
6 mm
|
|
Brass
|
6 mm
|
6 mm
|
|
Max. material thickness with TruDisk 5001
|
|
|
|
Mild steel
|
25 mm
|
25 mm
|
|
Stainless steel
|
20 / 25* mm
|
20 / 25* mm
|
|
Aluminium
|
20 / 25* mm
|
20 / 25* mm
|
|
Copper
|
10 mm
|
10 mm
|
|
Brass
|
10 mm
|
10 mm
|
|
Max. material thickness with TruDisk 8001
|
|
|
|
Mild steel
|
25 mm
|
25 mm
|
|
Stainless steel
|
20 / 40* mm
|
20 / 40* mm
|
|
Aluminium
|
20 / 25* mm
|
20 / 25* mm
|
|
Copper
|
10 mm
|
10 mm
|
|
Brass
|
10 mm
|
10 mm
|
|
Max. axis speed simultaneous
|
265 m/min
|
245 m/min
|
|
Dimensions
|
|
|
|
Length
|
8800 mm
|
11400 mm
|
|
Width
|
4800 mm
|
5300 mm
|
|
Height
|
2400 mm
|
2400 mm
|
|
Weight
|
12000 kg
|
13000 kg
|
|
| |
| |
 |
