Punch Laser Machines
|

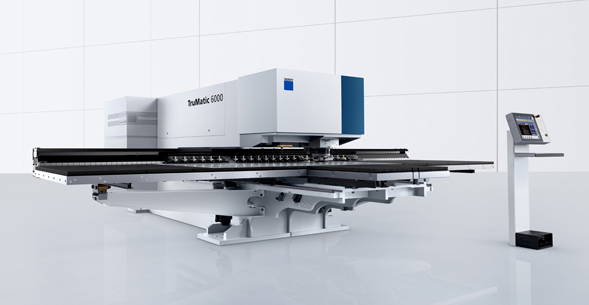

TruMatic 6000
|
| |
.jpg)
|
| |
|
Technical Specifications
|
TruMatic 6000 Medium format
|
TruMatic 6000 Large format
|
|
Working area
|
|
|
|
Punching operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Laser operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Combined punch/laser operation
|
2500 mm x 1250 mm
|
3050 mm x 1550 mm
|
|
Max. sheet thickness
|
8 mm
|
8 mm
|
|
Laser power
|
2000 W
2700 W
3200 W
|
2000 W
2700 W
3200 W
|
|
Max. punching force
|
180 kN
|
180 kN
|
|
Max. stroke rate
|
|
|
|
Punching (E = 1 mm)
|
1000 1/min
|
900 1/min
|
|
Marking
|
ca. 2800 1/min
|
ca. 2800 1/min
|
|
Speed C axis
|
|
|
|
C axis punching
|
330 rpm
|
330 rpm
|
|
C axis thread tapping
|
330 rpm
|
330 rpm
|
|
Max. number tools
|
|
|
|
with 2 clamps
|
23 pieces
|
|
|
with 3 clamps
|
|
22 pieces
|
|
Space requirements
|
8000 mm x 7165 mm
|
8333 mm x 7990 mm
|
|
