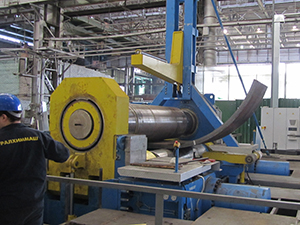

3-roll plate bending machine HDR
|
|
 |
| |
|
|
The HAEUSLER HDR type three roll plate bending machine features linear hydraulic movement of all three rolls: Vertical top roll and horizontal bottom roll movement. This concept offers some significant advantages over other 3 roll concepts regarding pre-bending, bending quality and work-piece handling.
The following basic operations can be used:
 Pre-bending of sheet edges
Rounding of sheets into cylindrical shapes
Cone bending
Press bending for even and uneven radii
Calibrating for minimization of radius variations in a welded tube
Available Bending Capacities :
Sheet witdh: Max. 8000 mm
Sheet thickness: Max. 300 mm for cold bending
|
|
