Laser Cutting Machines |

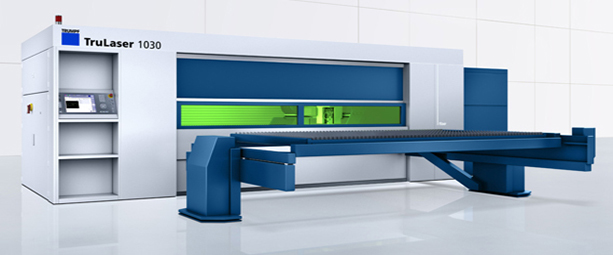

TruLaser 1030 fiber
|
| |
 |
| |
|
Technical Specifications
|
TruLaser 1030 fiber
|
|
Working range
|
|
|
X axis
|
3000 mm
|
|
Y axis
|
1500 mm
|
|
Z axis
|
75 mm
|
|
Max. workpiece weight
|
720 kg
|
|
Max. material thickness with TruDisk 2001
|
|
|
Mild steel
|
16 mm
|
|
Stainless steel
|
8 mm
|
|
Aluminum
|
6 mm
|
|
Copper
|
3 mm
|
|
Brass
|
3 mm
|
|
Max. material thickness with TruDisk 3001
|
|
|
Mild steel
|
20 mm
|
|
Stainless steel
|
16 mm
|
|
Aluminium
|
12 mm
|
|
Copper
|
4 mm
|
|
Brass
|
4 mm
|
|
Max. axis speed simultaneous
|
85 m/min
|
|
Dimensions
|
|
|
Length
|
7800 mm
|
|
Width
|
2800 mm
|
|
Height
|
2900 mm
|
|
Weight
|
10400 kg
|
|
| |
| |
 |
