Horizontal Balancing Machines
|
|
weight-from-500-to-10000-Kg
|
|

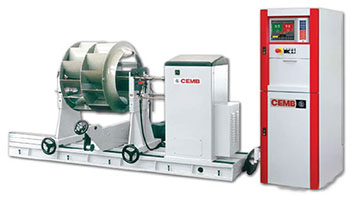

Z750-G-TC
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 1100 Kg
|
|
|
| |
|
|
.jpg)
|
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 1100
|
|
Maximum diameter of rotor
|
mm 1580
|
|
Diameter of rotor journals
|
mm 10 ÷ 100
|
|
Maximum sensitivity
|
g.mm 2
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|
|

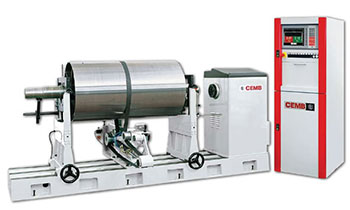

Z2000-G-TC
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 3000 Kg.
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 3000
|
|
Maximum diameter of rotor
|
mm 1580
|
|
Diameter of rotor journals
|
mm 15 ÷ 180
|
|
Maximum sensitivity
|
g.mm 4
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|
|
Z4500-TC
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 6000 Kg.
|
|
|
| |
|
|
|
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 6000
|
|
Maximum diameter of rotor
|
mm 1580
|
|
Diameter of rotor journals
|
mm 20 ÷ 190
|
|
Maximum sensitivity
|
g.mm 6
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
|
|
Z8000-G-TC
|
|
|
| |
|
|
|
Balancing machine for rotors weight up to 10000 Kg.
|
|
|
| |
|
|
 |
|
|
Technical Specifications
|
|
|
Maximum weight for symmetric rotor
|
Kg 10000
|
|
Maximum diameter of rotor
|
mm 1900
|
|
Diameter of rotor journals
|
mm 20 ÷ 200
|
|
Maximum sensitivity
|
g.mm 15
|
|
Balancing speed (measuring unit)
|
Rpm 90 ÷10000
|
|
| |
|
|
| |
|
|
| |
|
 |
