Miter Bandsaw Machines
|
|

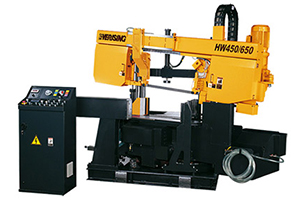

HW450/650II
|
|
|
| |
|
|
 |
|
|
Model
|
HW450/650II
|
|
Capacity
|
90°
|
?
|
490 mm
|
|
¦
|
650 x 450 mm (W x H)
|
|
±45°
|
?
|
390 mm
|
|
¦
|
390 x 420 mm (W x H)
|
|
-60°
|
?
|
260 mm
|
|
¦
|
260 x 420 mm (W x H)
|
|
Blade Speed
|
2 ~ 100 m/min
|
|
Blade Size
|
7200 x 41 x 1.3 mm
|
|
Motor
|
Blade
|
3.7 kW (5 HP)
|
|
Hydraulic Pump
|
1.5 kW (2 HP)
|
|
Oil Mist
|
180 W (1/4 HP)
|
|
Wire Brush
|
90 W (1/8HP)
|
|
Blade Tension
|
Hydraulic
|
|
Angle Swivel
|
Powerful with LED Display
|
|
Table Height
|
890 mm
|
|
Vise Clamping Type
|
Hydraulic (Full Stroke)
|
|
Machine Weight
|
4500 kgs
|
|
Floor Space ( W x D)
|
3500 x 2100 mm
|
|
| |
|
|
|
|

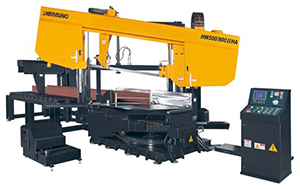

HW500/900II
|
|
|
 |
|
|
Model
|
HW500/900II
|
|
Capacity
|
90°
|
?
|
500 mm
|
|
¦
|
900 x 500 mm (W x H)
|
|
±45°
|
?
|
500 mm
|
|
¦
|
580 x 500 mm (W x H)
|
|
-60°
|
?
|
375 mm
|
|
¦
|
375 x 500 mm (W x H)
|
|
Min Clamping
|
150 mm
|
|
Blade Speed
|
15 ~ 100 m/min
|
|
Blade Size
|
8300 x 54 x 1.6 mm
|
|
Motor
|
Blade drive
|
5 kW (7.5 HP)
|
|
Hydraulic Pump
|
2.2 kW (3 HP)
|
|
Oil Mist
|
180 W (1/4 HP)
|
|
Wire Brush
|
90 W (1/8 HP)
|
|
Blade Tension
|
Hydraulic
|
|
Angle Swivel
|
Powerful with LED Display
|
|
Table Height
|
900 mm
|
|
Vise Clamping Type
|
Hydraulic (Full Stroke)
|
|
Machine Weight
|
5750 kgs
|
|
Floor Space ( W x D )
|
4100 x 3650 mm
|
|
| |
|
|
| |
|
|
|
|

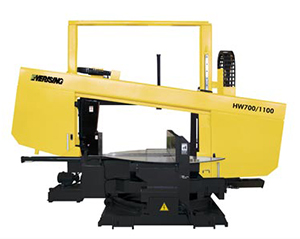

HW700/1100
|
|
|
| |
|
|
 |
|
|
Model
|
HW700/1100
|
|
Capacity
|
90°
|
?
|
715 mm
|
|
¦
|
1100 x 700 mm (W x H)
|
|
±45°
|
?
|
680 mm
|
|
¦
|
680 x 700 mm (W x H)
|
|
-60°
|
?
|
480 mm
|
|
¦
|
480 x 700mm (W x H)
|
|
Min Clamping
|
410 mm
|
|
Blade Speed
|
15 ~ 100 m/min
|
|
Blade Size
|
9600 x 54 x 1.6 mm
|
|
Motor
|
Blade Drive
|
7.5 kW (10 HP)
|
|
Hydraulic Pump
|
2.2 kW (3 HP)
|
|
Oil Mist
|
180 W (1/4 HP)
|
|
Wire Brush
|
90 W (1/8 HP)
|
|
Blade Tension
|
Hydraulic
|
|
Angle Swivel
|
Powerful with LED Display
|
|
Table Height
|
940 mm
|
|
Vise Clamping Type
|
Hydraulic (Full Stroke)
|
|
Machine Weight
|
7000 kgs
|
|
Floor Space (W x D)
|
4600 x 4400 mm
|
|
| |
|
|
